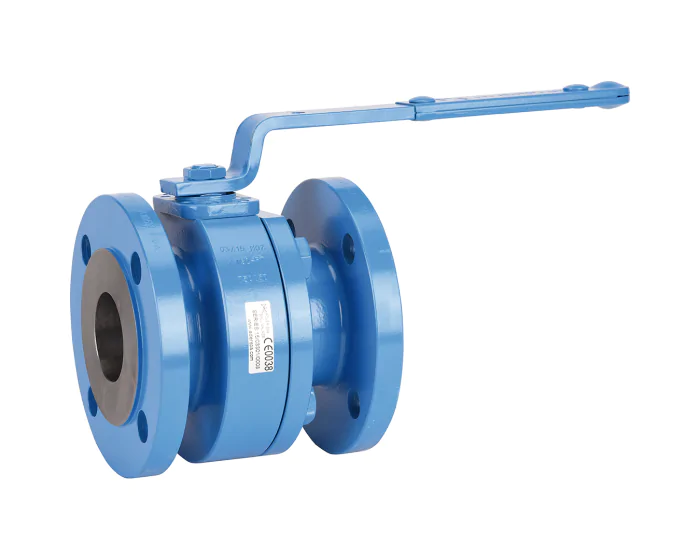

ADLER carbon steel ball valve 750 2 piece body RF PN40/16
€238.43
(excl. btw)
The Sferaco 750 series ADLER FM2 ball valve, 2-piece body with PN16/40 flanges, stainless steel, ISO 10497 fire safety, adler type FM2, motorizable, packing gland, double tightness for industry and compressed air.
Specification
Value
DN inches NPS
1/2''
Option certificate 3.1
Yes
Construction standard
BS EN 12516-2 - ISO 14313
CE risk category
III Module H
NACE MR0175
Yes
Fire safe standard
ISO 10497:2004
SIL
SIL 1
Type of paint
Epoxy
Paint coating thickness (µm)
35.00
EN face-to-face standard
EN 558 Series 27
DIN face-to-face standard
DIN 3202 F4. DIN 3357-2 ff
Face to face standard
error to be processed
Brand
ADLER
Tightness test standard
EN 12266-1 Rate A
Stem sealing material
15% Graphite filled PTFE gland packing
Antistatic device
Yes
Steam
Yes
Opening device
Handle
Fugitive emissions standard
ISO 15848-1 Class A
Application
Industry
ATEX atmosphere
Group II Cat. 2G/2D
Shaft/stem matérial
Stainless steel AISI 304
Square, star (mm)
MEP Ø10x6
ATEX compatible
Yes
Torque (Nm)
6
DN
DN15 - 1/2''
Face to Face (mm)
115.0
Fluid
Hydrocarbons. gas
Body material
Carbon steel ASTM A105 N
Number of ways
2
Bore
Full
ISO pad 5211
Yes
Packing gland
Yes
PS (bar)
40
Connections
Flanged PN10/40
Seats
PTFE
Ball material
Stainless steel ASTM A479 304L
TS max (°C)
200
TS min (°C)
-28
Ball valve design
Split body
ATEX zone
1 & 21. 2 & 22
Warranty period
2 years
CE
Yes
Main product colour
Blue
Handle material
Carbon steel
Handle type
Blue lever
Fire safe
Yes
If you have any questions about this product, please feel free to contact us .
Product Name
Product Number
EVAC Number
Price
Add to Cart
6787
Flanged PN10/40 Carbon steel ASTM A105 N Full Split body DN15 - 1/2'' Flanged PN10/40
750015
S1006989
€238.43
(excl. btw)
add to cart
6788
Flanged PN10/40 Carbon steel ASTM A105 N Full Split body DN20 - 3/4'' Flanged PN10/40
750020
S1006990
€269.29
(excl. btw)
add to cart
6789
Flanged PN10/40 Carbon steel ASTM A105 N Full Split body DN25 - 1'' Flanged PN10/40
750025
S1006991
€286.11
(excl. btw)
add to cart
6790
Flanged PN10/40 Carbon steel ASTM A105 N Full Split body DN32 - 1''1/4 Flanged PN10/40
750032
S1006992
€370.26
(excl. btw)
add to cart
6791
Flanged PN10/40 Carbon steel ASTM A105 N Full Split body DN40 - 1''1/2 Flanged PN10/40
750040
S1006993
€482.46
(excl. btw)
add to cart
6792
Flanged PN10/40 Carbon steel ASTM A105 N Full Split body DN50 - 2'' Flanged PN10/40
750050
S1006994
€563.81
(excl. btw)
add to cart
6793
Flanged PN10/40 Carbon steel ASTM A105 N Full Split body DN65 - 2''1/2 Flanged PN10/16
750065
S1006995
€776.99
(excl. btw)
add to cart
6794
Flanged PN10/40 Carbon steel ASTM A105 N Full Split body DN80 - 3'' Flanged PN10/40
750080
S1006996
€956.51
(excl. btw)
add to cart
6795
Flanged PN10/40 Carbon steel ASTM A105 N Full Split body DN100 - 4'' Flanged PN10/16
750100
S1006997
€1,301.51
(excl. btw)
add to cart
6796
Flanged PN10/40 Carbon steel ASTM A105 N Full Split body DN125 - 5'' Flanged PN10/16
750125
S1006998
€2,208.41
(excl. btw)
add to cart
6797
Flanged PN10/40 Carbon steel ASTM A105 N Full Split body DN150 - 6'' Flanged PN10/16
750150
S1006999
€4,197.91
(excl. btw)
add to cart
